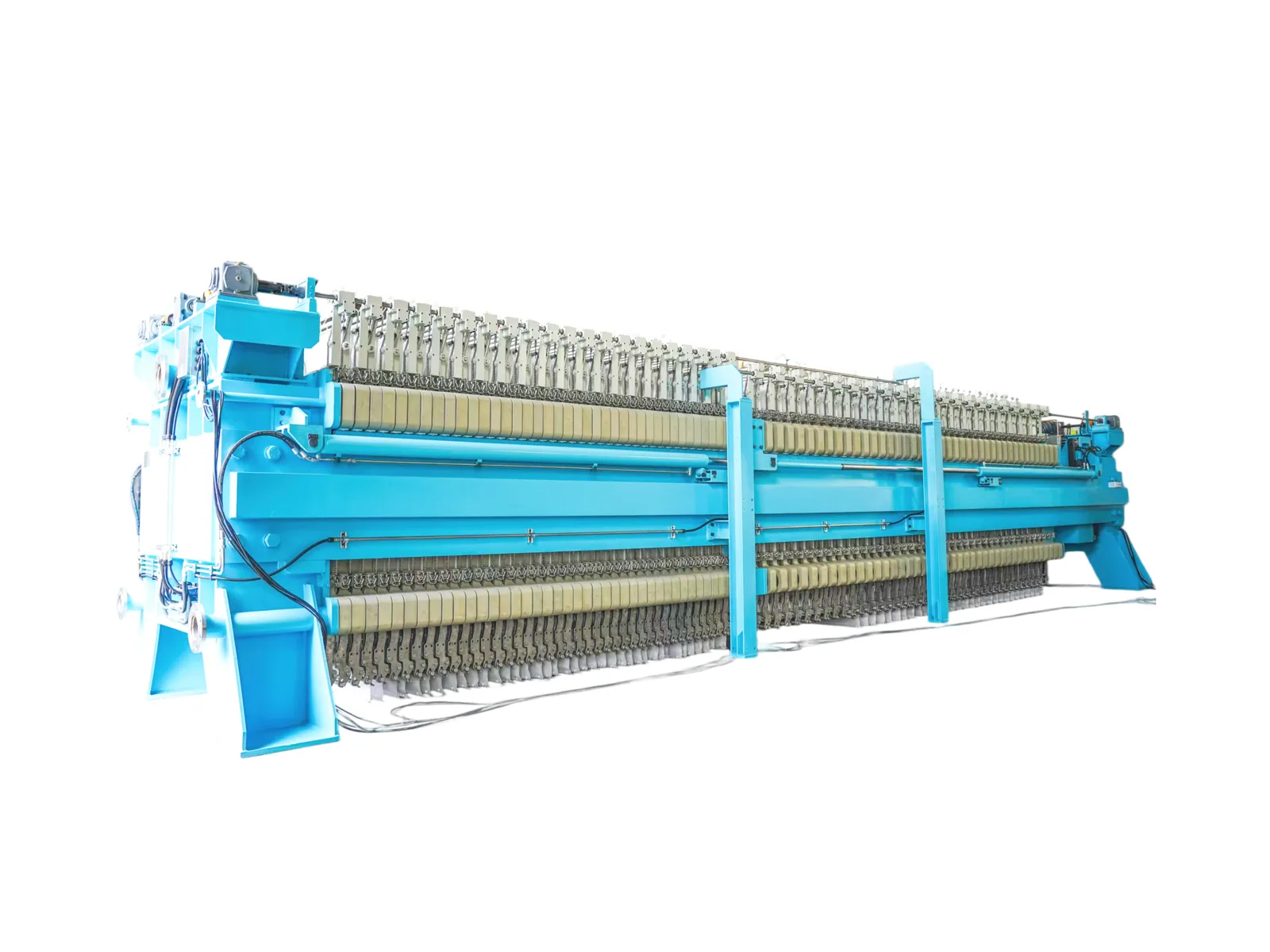

CXBK plate-and-frame filter press.
A batch press that forms the cake in closed chambers under pressure, chosen where the dry-solids content of the cake is the objective rather than a continuous cycle.
What a plate-and-frame press does
A plate-and-frame press filters in batches. The filter cloths are spread over the plates and supported by the drainage grooves; when the plates are clamped, the cloth becomes the sealing material and the cavity between every two plates forms a separate filter chamber. The material is fed into the chambers through the central opening, the filtrate is driven out through the cloth by the feed pressure and runs off the plate once it has collected, and the solids stay behind as a cake. When the chambers are full the feed stops, the plates are opened and the cake is discharged. Because the cake is formed under pressure in a closed chamber, the press is chosen where the dry-solids content of the cake matters more than a continuous cycle — typically on mining, chemical and electroplating sludge.
CXBK plate-and-frame filter press — model range

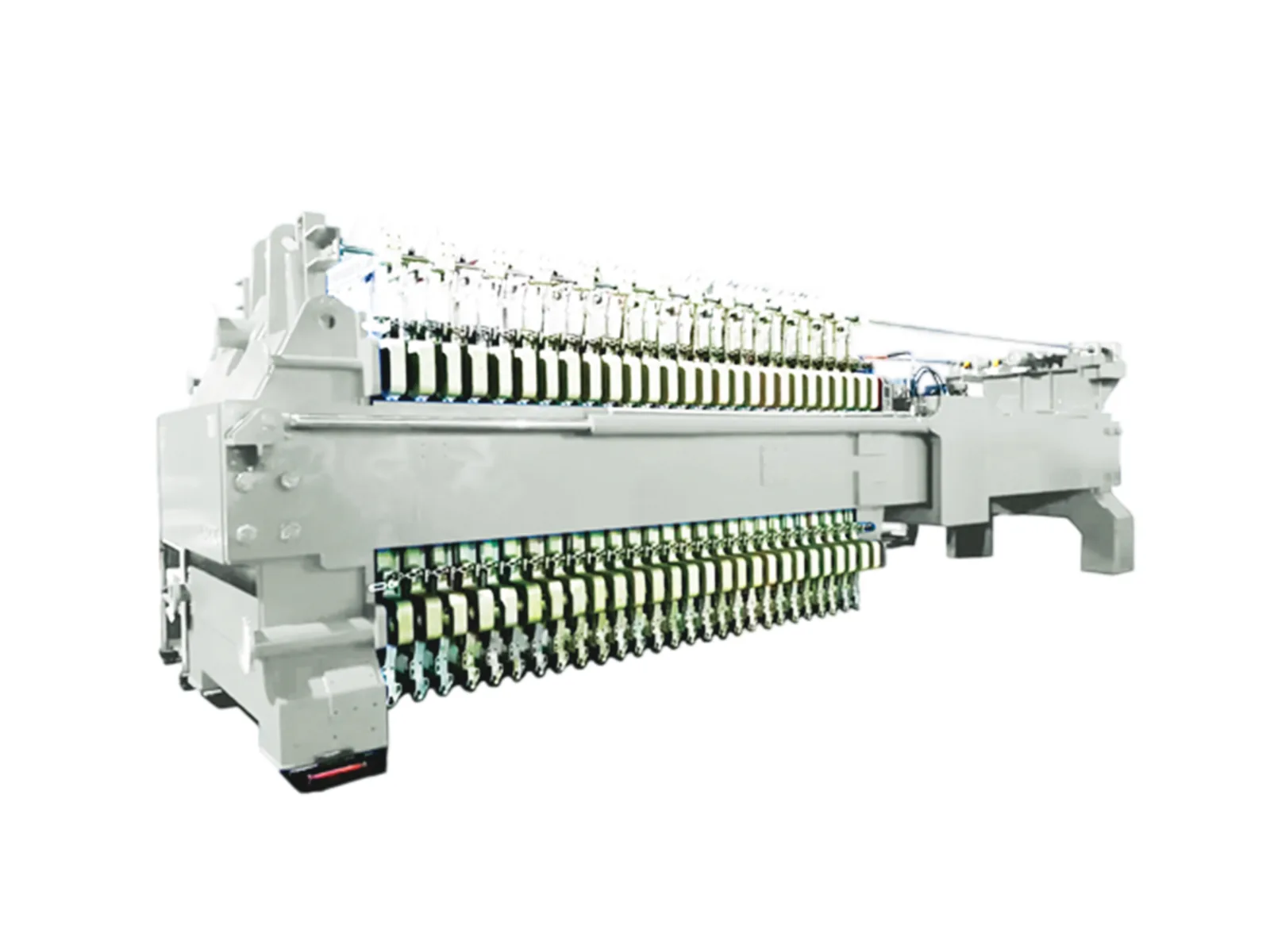

The plate count and the chamber depth set the volume of sludge one batch can take, and both follow the sludge volume per cycle and the target cake. The frame is built around the plate pack: the rails carry the plates, the liquid tank collects the filtrate below them, and the pressing device closes the stack for the filtration cycle.
| Model | Filter area (m²) | Chamber volume (L) | Plate size (mm) | Working pressure (MPa) | Dimensions L × W × H (mm) |
|---|---|---|---|---|---|
| CXBK series | [to be confirmed with factory] | [to be confirmed with factory] | [to be confirmed with factory] | [to be confirmed with factory] | [to be confirmed with factory] |
Specifications are confirmed against the factory catalogue and the actual build during sizing.
Applications
Mining and mineral processing sludge
Dewatering tailings and process slurries to a cake that can be handled, stacked and hauled.
Chemical sludge
Dewatering the sludge produced by chemical processes, where the cake forms in closed chambers and the filtrate is collected rather than drained away.
Electroplating and metal finishing sludge
Dewatering plating and metal-finishing sludge — a duty where the volume of cake that has to be disposed of drives the choice of press.
Delivery
Units are assembled and tested at our factory before shipment, then shipped with export documentation. Loading arrangement and delivery schedule: [to be confirmed with factory].
